Cas-CLOVER Gene Editing Of HEK293 Cells: A Better Investment Than CRISPR For Commercial Gene Therapy And Vaccine Bioprocessing

Blog

Viruses equipped with natural abilities as vehicles of gene transfer,  promote host-viral co-evolution. For millions of years, the human immune system has been at war with all types of viruses and pathogens, resulting in new serotypes and mechanisms of gene transfer.

Now viral vectors, such as adeno-associated virus (AAV) vectors can be engineered to deliver genetic material into the cells or genes of humans without the virulence and replication of the natural virus. Therefore, the millions of years of viral evolution can be harnessed for the development of vaccines and gene therapies in cell culture.

Roadblocks In Viral Vector  Biomanufacturing

Despite the advancements in recombinant AAV (rAAV) vectors; the path to developing new gene therapies and vaccine treatments is riddled with roadblocks. One key bottleneck is the development of scalable cell line manufacturing focused on high titer, purity and potency of viral vectors. . From low-yielding biomanufacturing processes and low cell line engineering efficiencies to the financial constraints of high royalty fees in order to use certain CRISPR/Cas9 platforms, it remains difficult to produce large quantities of virus. But this capability is crucial for clinical studies and commercially-produced medicine.

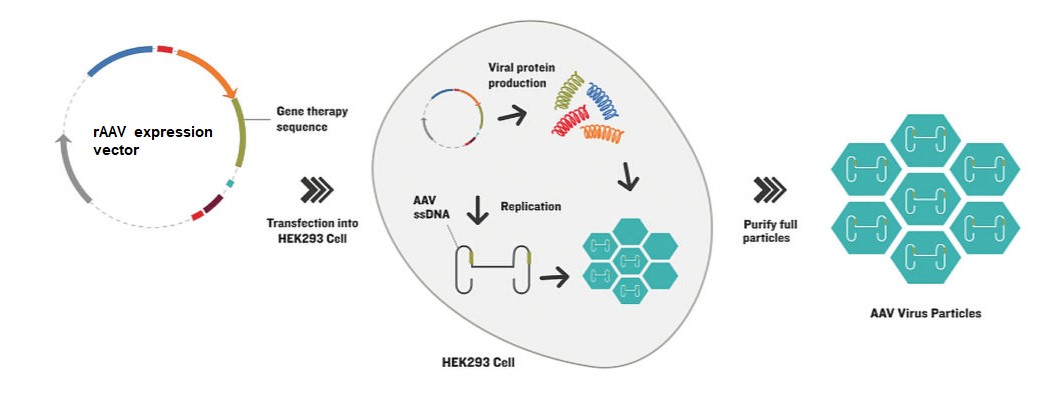

Example of viral vector cell line development adopted from The Next Generation of Cell Factories for Viral Vector Production (GEN News) [1]. Recombinant adeno-associated virus (rAAV) expression vector(s) are transfected into the bioprocessing cell line, i.e. suspension HEK293 cells, which produces viral capsids for delivery of the gene of interest. Purified viral particles can’t replicate but efficiency infect cells delivering therapeutic genes.

Gene Editing – Key Improvements To Virus Bioprocessing

HEK293 cells are a platform for simple and efficient transfection but not as widely used for large scale bioprocessing like its biologics producing counterpart Chinese Hamster Ovary (CHO) cells.

In the first step, Grieger et al. [2] adopted adherent HEK293 cells to animal component free suspension culture in shake flasks and WAVE bioreactors. Following several optimization steps the group developed a 1-week process with significantly improved post-purification yields of full particles for multiple serotypes and chimeric capsids.

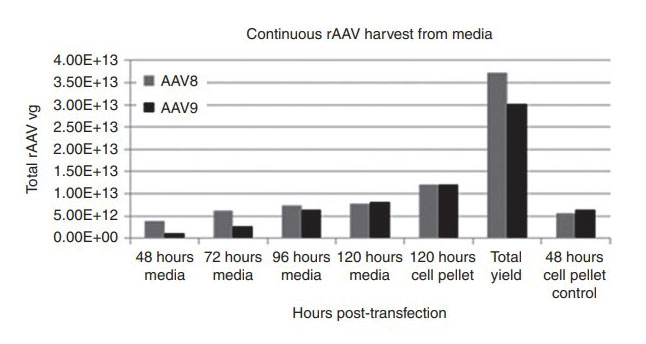

rAAV serotype AAV8 and AAV9 yield under the Grieger et al. continuous production process utilizing suspension HEK293 cells.

While the majority of rAAV manufacturing still relies on  traditional platforms such as transient transfection, more sophisticated cell line development improvements similar to those widely used in suspension CHO cells are starting to be implemented.

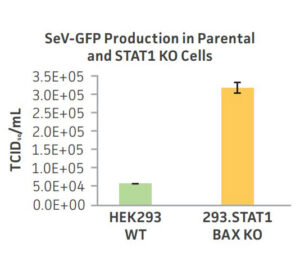

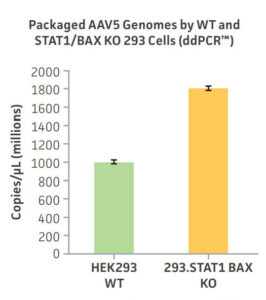

Gene-editing technologies, such as CRISPR/Cas9 have recently been used by The American Type Culture Collection (ATCC) to improve manufacturing yields. Genes that produce proteins STAT1 and BAX are known to inhibit viral production in cells by producing interferon and other antiviral responses.  STAT1/BAX double knockout HEK293 cells demonstrate improved yields of  Sendai virus and rAAV over their respective parental cell lines.

But there are significant problems when editing cells with CRISPR/Cas9 such as its tendency to produce off-target mutations. The inaccuracy of CRISPR poses further issues downstream and can compromise the utility of cell lines. Additional  disadvantages of these cells are that they are not in the bioprocessor’s proprietary cell lines and  high upfront costs and royalty fees may be associated with the CRISPR patents and the background cell material.

Cas-CLOVER And Demeetra “The Clean Alternative To CRISPR/Cas9”

Anything produced with CRISPR can be subject to these additional fees and downstream royalties even on the therapeutic products. The royalties in particular are difficult for biotechnology companies and CDMO’s alike. Thus, cells like those developed by the ATCC can become costly because they were edited using CRISPR/Cas9. So if one wishes to use these cell lines commercially, they must get a separate license from the patent holders, which in turn will likely include difficult financial and royalty terms. Fortunately, a verified alternative is now available.

The Cas-CLOVER system exhibits high specificity and efficiency, and has enormous advantages and financial freedom over the limitations of CRISPR/Cas9. Cas-CLOVER has virtually undetectable off-target activity. It is a highly advanced genome editing technology that has the ability for precise cutting, and that’s why it is rapidly becoming the prevalent system for cell line development as well as genome editing for synthetic biotechnology and agriculture. Companies can even use their own cells to edit genes with Cas-CLOVER for a more economically viable strategy earning a much better return on investment.

To learn more about how Demeetra can help accelerate your gene editing research with our toolkit, click here. If you’d like to discuss licensing and forming a partnership, fill out the form and we’ll get back to you right away.

References

  1. GEN News (2021). The Next Generation of Cell Factories for Viral Vector Production. Volume 41. Number 4.
  2. Grieger et a. (2016) Molecular Therapy vol. 24 no. 2, 287-297
  3. Kevin Bloh, Rohan Kanchana, Pawel Bialk, Kelly Banas, Zugui Zhang, Byung-Chun Yoo, and Eric B. Kmiec. The CRISPR Journal. Feb 2021.120-131. http://doi.org/10.1089/crispr.2020.0022.
